- Nama Produk

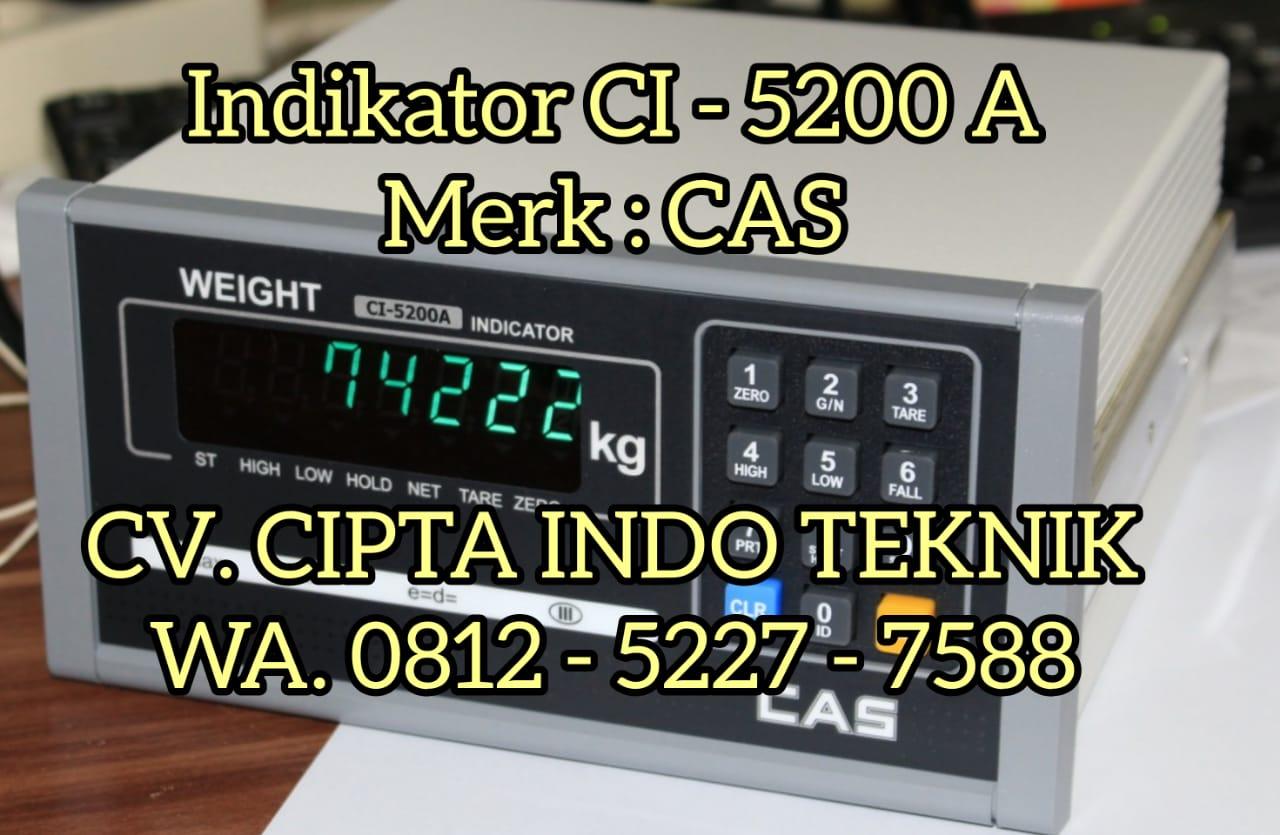

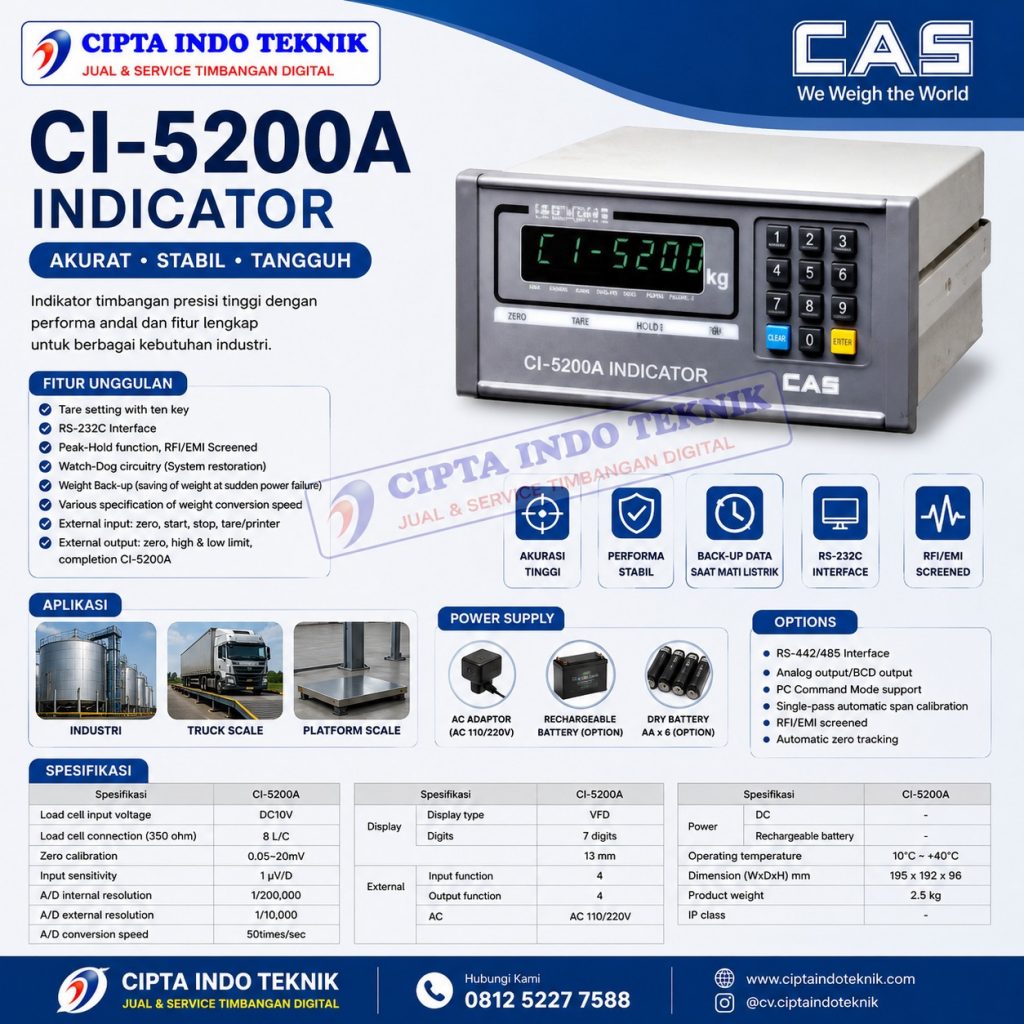

INDIKATOR CI – 5200 A MERK CAS
- Brand
INDIKATOR CI – 5200 A MERK CAS
FEATURES
- Tare setting with ten key
- RS-232C Interface
- Peak-Hold function, RFI/EMI Screened
- Watch-Dog circuitry (System restoration)
- Weight Back-up (saving of weight at sudden power failure)
- Various specification of weight conversion speed
- External input: zero, start, stop, tare/printer
- External output: zero, high & low limit, completion CI-5200A
APPLICATION
- Measuring instrument tester, Platform scale, Truck scale
OPTIONS
- RS-442/485 interface
- Analog output/BCD output
- PC Command Mode support
- Single-pass automatic span calibration
- RFI/EMI screened
- Automatic zero tracking
SPECIFICATIONS
| Model | CI-5200A | |
| Load cell input voltage | DC 10V | |
| Load cell connection (350 ohm) | 8 L/C | |
| Zero calibration | 0.05 ~ 20 mV | |
| Input sensitivity | 1μV/D | |
| A/D internal resolution | 1/200,000 | |
| A/D external resolution | 1/10,000 | |
| A/D Conversion speed | 50times/sec | |
| Display | Display type | VFD |
| Digits | 7 digits | |
| Text size | 13 mm | |
| Input function | 4 | |
| Out put function | 4 | |
| Power | AC 110/220V | |
| Operating temperature | -10˚C ~ +40˚C | |
| Dimension (WxDxH)mm | 195x192x96 | |
| Product weight | 2.5kg | |
Kategori : Batching Control System Indicator, Indicators
