- Nama Produk

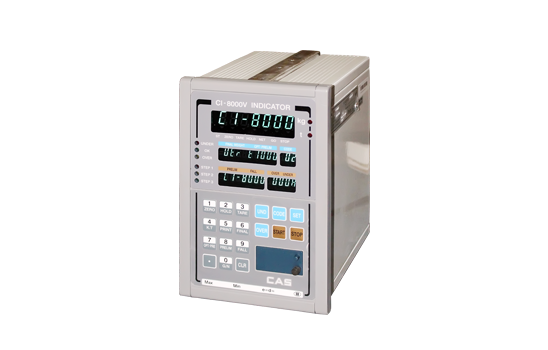

CAS CI-8000V
- Brand
CAS CI-8000V
FEATURES
- 3 displays
- RFI/EMI screened
- WATCH-DOG circuitry
- Control status display(6 LED)
- Standard parallel, Serial & Code input port
- Panel mounting type
- 19 keys(Including ten keys)
- 2 options installed (Analog out, BCD out, Current loop)
- Standard external output(10 contacts)
- Store 100 control data(Set point))
OPTIONS
- Serial interface : RS-422/485
- BCD out
- Analog out : Iout(4-20mA)
- Analog out : Vout(0-10V)
- Current loop
SPECIFICATIONS
| Model | CI-8000V |
| Input Sensitivity | 0.5 V/D |
| Load cell ExcitationVoltage | DC 10V, 300mA(Up to 8 Load cell) |
| Zero Adjust Range | 0mV ~ 20mV/- 10mV ~ 10mV |
| System Linearity | 0.01% F.S. |
| A/D Internal Resolution | 1/1,000,000 |
| A/D External Resolution | 1/30,000(Max.) |
| A/D Conversion Rate | 50 times/sec |
| Display Speed | 20 times, 10 times, 5 times/sec |
| Span Calibration | Full Digital Calibration(Single pass automatic span calibration) |
| Display | VFD 7 digit, 22 digit (H=13 mm, 8 mm) |
| Operating Temperature | -10 C +40 C |
| Power Source | AC 110/220V, 50/60Hz |
| Power Consumption | Approx. 20W |
| Dimension(mm) | 142(W) 180(D) 222(H) |
| Panel Cutting Size | 135(W) 214(D)mm |
| Product Weight | 3.5kg |
Kategori : Batching Control System Indicator, Indicators
