- Nama Produk

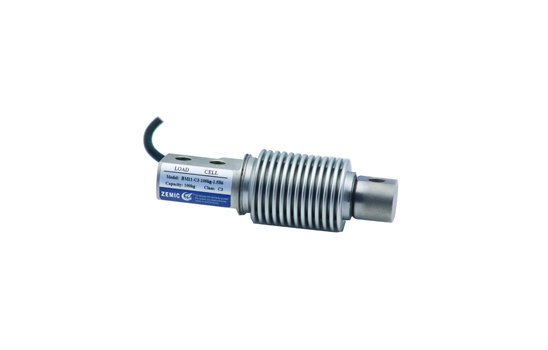

LOADCELL ZEMIC BM – 11 BENDING BEAM 100 Kg
- Brand
LOADCELL ZEMIC BM – 11 BENDING BEAM 100 Kg
| Specifications | |||||
| Accuracy class | OIML R60 C3 | ||||
| Output sensitivity (=FS) | mV/V | 2.0 ± 0.2 | |||
| Maximum capacity (Emax) | kg | 10, 20, 30, 50, 100 | 200, 300, 500 | ||
| Maximum number of load cell intervals (Nlc) | 3000 | ||||
| Ratio of minimum LC verification interval Y = Emax / Vmin | 10000 – 15000 | 6000 | |||
| Combined error | %FS | ± 0.020 | |||
| Minimum dead load | kg | 0 | |||
| Safe overload | of Emax | 150% | |||
| Ultimate overload | of Emax | 300% | |||
| Zero balance | of FS | < ± 1.0% | |||
| Excitation, recommended voltage | V | 5 ~ 12 | |||
| Excitation maximum | V | 18 | |||
| Terminal resistance, input | Ω | 430 ± 50 | |||
| Terminal resistance, output | Ω | 351 ± 2 | |||
| Insulation impedance | MΩ | 5000 (at 50V DC) | |||
| Temperature range, compensated | °C | -10 ~ 40 | |||
| Temperature range, operating | °C | -35 ~ +65 | |||
| Element material | Stainless steel | ||||
| Ingress protection (according to EN 60529) | IP68 | ||||
| Recommended torque on fixation bolts | Nm | M8 (20-50kg):15 | M8 (<300kg):25 | M10:40 | |
| ATEX classification (optional) | II1G Ex ia II1C T4 | II1D Ex ia D 20 T73°C | II3G nL IICT4 | ||
| Features | |
| Stainless steel IP68 bending beam point load cell | Hermetically closed |
| Suitable for pallet, platform and small hopper scales | High accuracy |
Kategori : Load Cell, Load Cell Bending Beam
