- Nama Produk

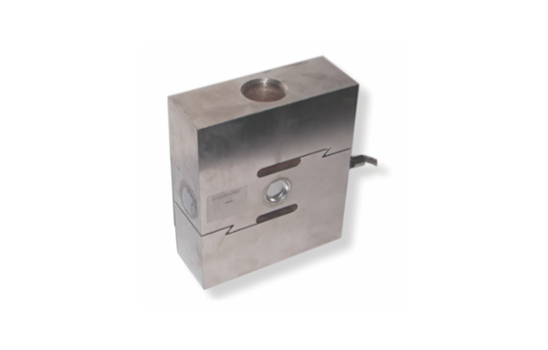

LOADCELL S TYPE MK – TSX MERK MK CELLS
- Brand
LOADCELL S TYPE MK – TSX MERK MK CELLS
| Specifications | |||
| Rated Capacities (Emax) | 0.1, 0.2, 0.25, 0.3, 0.5, 0.75, 1, 1.5, 2, 3, 5, 7.5, 10, 15, 20t | Temperature, compensated | -10°C ~ +40°C |
| Rated Output | 3.0 ± 0.002mV/V | Temperature, operating | -30°C ~ +70°C |
| Total Error | ± 0.05% FS | Maximum Safe Overload | 120% FS |
| Creep Error (30 min) | ± 0.03% FS | Ultimate Overload | 250% FS |
| Zero Balance | ± 1% FS | Excitation, Recommended | 10 ~ 12V DC |
| TC Zero | ± 0.03% FS/10°C | Excitation, Maximum | 15V DC |
| TC Span | ± 0.03% FS/10°C | Protection Class | 1P68 |
| Input Resistance | 400 ± 20Ω | Contruction | Alloy steel |
| Output Resistance | 352 ± 3Ω | Cable | Length : 6m |
| Insulation Resistance | ≤ 5000MΩ | Diameter : Φ 5mm | |
| Features | |
| Heavy duty, reliability and super stability | Design of metal welded stainless steel |
| Easy to installation, good interchangeability | Constructed of excellent capability in anti erosion, moisture proof |
| 5 core high quality orange cable | Suitable in crane, hopper scales, and other special weighing instrument |
Kategori : Load Cell, Load Cell "S" Type
